7.2kVAC High Voltage Ceramic Capacitor Core Rod Withstand Voltage 41kVAC/5min In Insulating Oil

  • 1
  • 2
  • 3

Brand Name : XIWUER

Model Number : 7.2kv 150pF

Certification : ISO9001,ISO14001,ISO45001

Place of Origin : XIAN, CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 8,000,000 a year

Delivery Time : 5-7 days

Packaging Details : Carton

Rated Voltage : 7.2kVAC

Nominal Capacitance(pF) : 150pF

Nominal Capacitance Range Test Frequency:1kHz±20% Test Voltage:1V±0.2 V : 140~170

Withstand Voltage(In the insulating oil) : 41kVAC/5min

Partial Discharge : 7.92kVAC≤10pC

Lightning Impulse kV1.2/5μs : 60

Contact Now

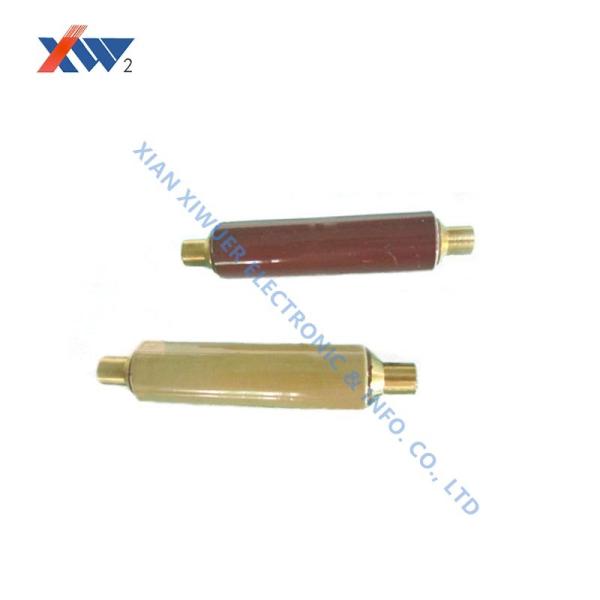

High voltage ceramic capacitor core rod 7.2kv 150pF

Application:
Itisusedfor3.6kV~40.5kVhighvoltagepresenceindicatingdevice......

Feature:
Rated Voltage:7.2kVAC
Nominal Capacitance(pF):150
Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage:1V+0.2V:140~170
Withstand Voltage(In the insulating oil):41kVAC/5min
Partial Discharge:7.92kVAC≤10pC
Lightning Impulse kV1.2/5μs:60


For Instructions:

PD not more than 5pC at 1.1 times rated voltage without special instructions. Comply with the standard DL /T538-2006(High Voltage Presence Indication Device).
|The dimensions can be made according to customer requirements.
Special attention: Prevent the product from damage, moisture and contamination.
Comply with the standard JBT10305-2001(Technical conditions for post insulator of organic material in the 3.6kV40.5kV high voltage equipment at customers end).
For areas below 100 meters or in high altitude areas, please indicate it in the order notes.

CERTIFICATE

7.2kVAC High Voltage Ceramic Capacitor Core Rod Withstand Voltage 41kVAC/5min In Insulating Oil7.2kVAC High Voltage Ceramic Capacitor Core Rod Withstand Voltage 41kVAC/5min In Insulating Oil7.2kVAC High Voltage Ceramic Capacitor Core Rod Withstand Voltage 41kVAC/5min In Insulating Oil
